Assembly Jigs & Master Tooling
Precision aerospace manufacturing structures supplied to major Indian and global projects.
IJT Assembly Jigs

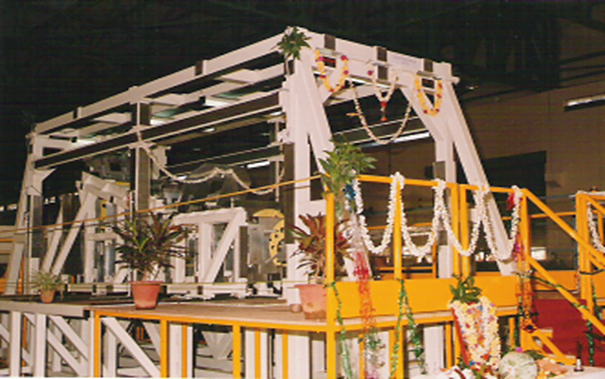

1. FRONT FUSELAGE ASSEMBLY JIGS for HJT-36 along with walk ways.
- We have supplied 1 No of Rear Fuselage Assembly Jig of IJT Commissioned at TAD, Kanpur for LSP
- We have supplied 1 more to M/s. HAL (IJT), Commissioned at TAD, Kanpur for LSP
- We have supplied 1 No for M/s. HAL (ARDS) for production of prototype
2. FRONT FUSELAGE ASSEMBLY JIG for LCA Training along with Walk Ways
Centre, Fuselage Assy. Jig HAL, ARDC, Bangalore

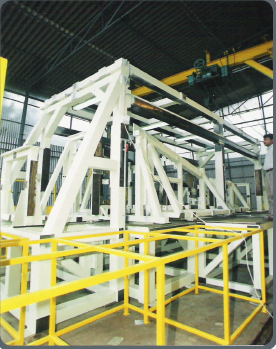

Front, Fuselage Assy. Jig HAL, ARDC, Bangalore

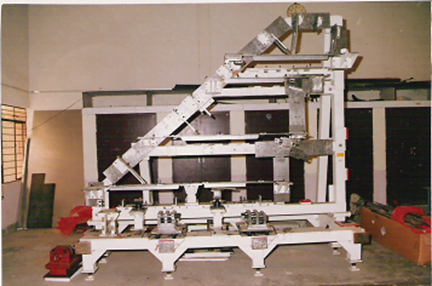

FIN ASSEMBLY JIG FOR LCA
- 1. We have supplied Front intermediate Assembly Jig for LCA to LCA Project Group.
- 2. We have supplied No. of Sub-Assembly Jigs for Production of LCA
- 3. Design and fabrication of Master Tool Gauge (MTG) for Centre Fuselage for LCA.
- 4. Design and Fabrication of Master Tool Gauge (MTG) for Front Fuselage for LCA.
- 5. Design and Fabrication of Front Fuselage Interstage-2 Assembly Jig for LCA.
Global Aviation & Helicopter Tooling

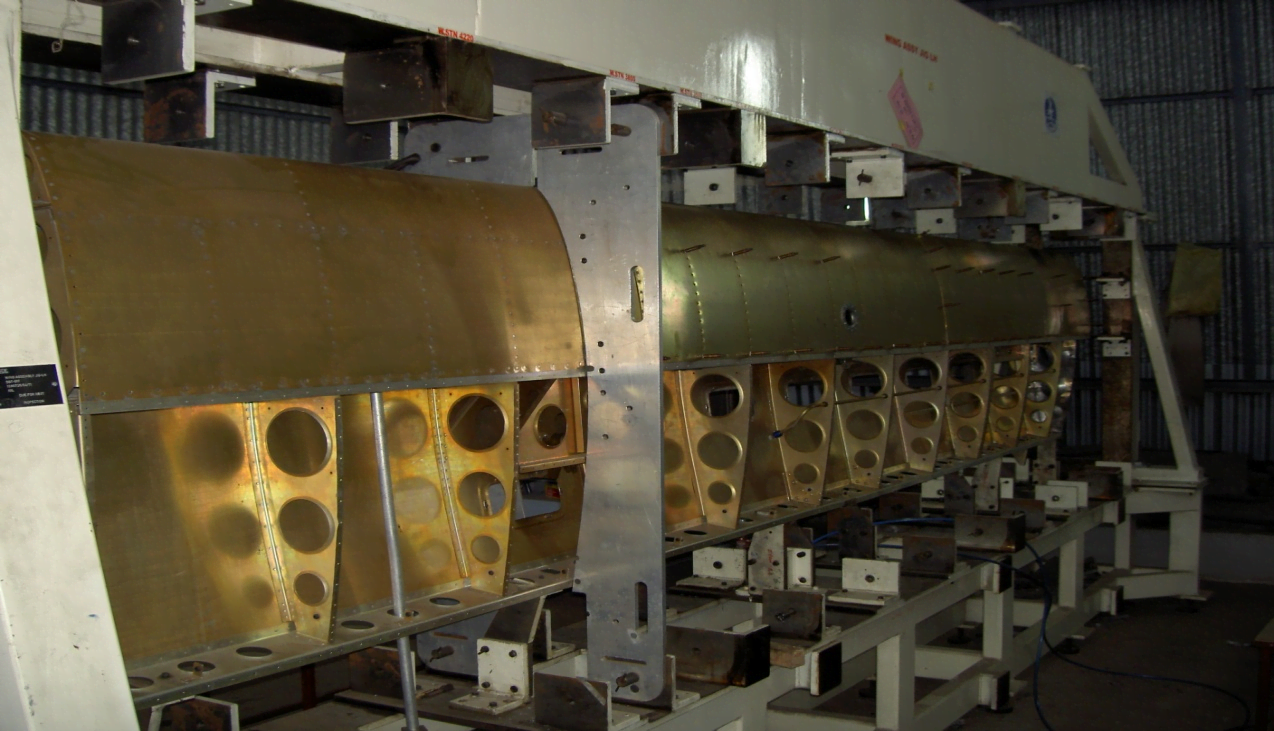

Wing Assembly For Seabird Aviation Jordan

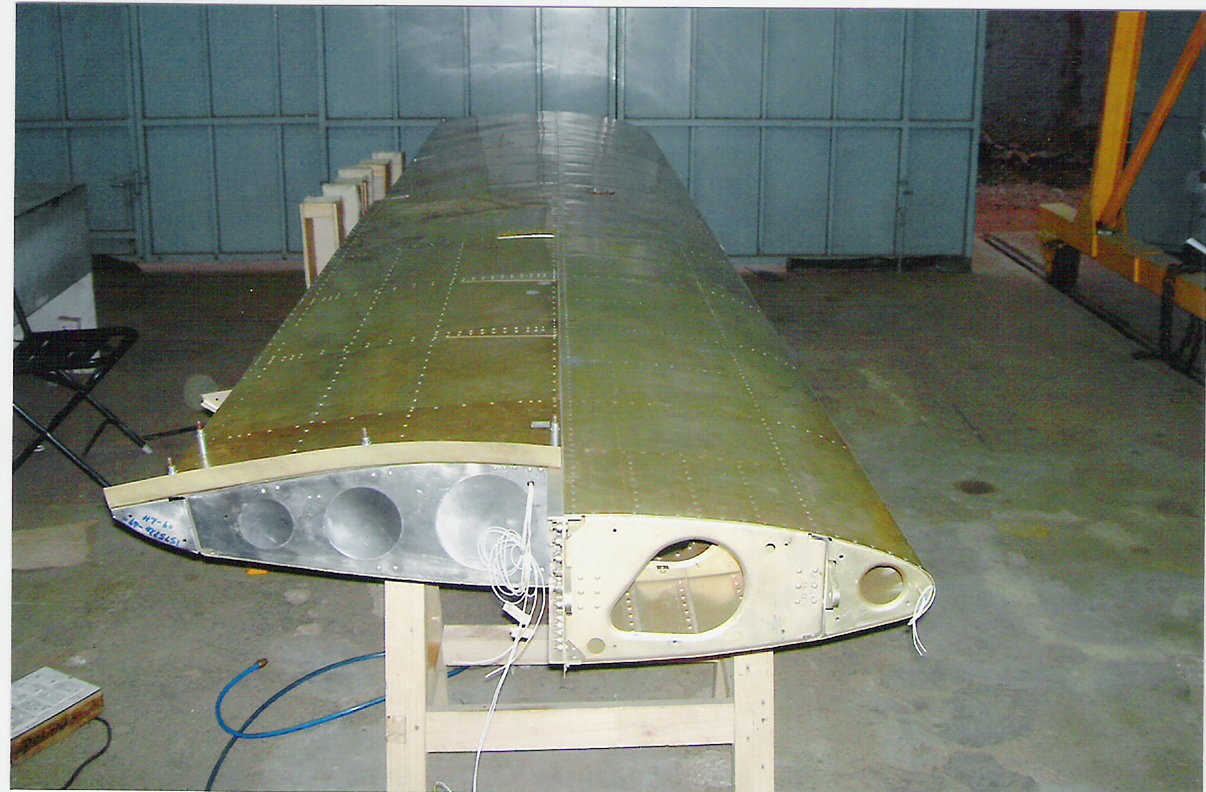

Wing For Seabird Aviation Jordan

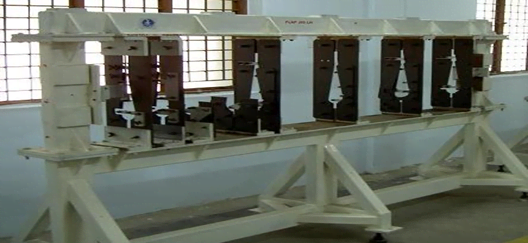

Flap Assembly Jig For Seabird Aviation Jordan
Wing Assembly For Seabird Aviation Jordan.
Wing For Seabird Aviation Jordan.
